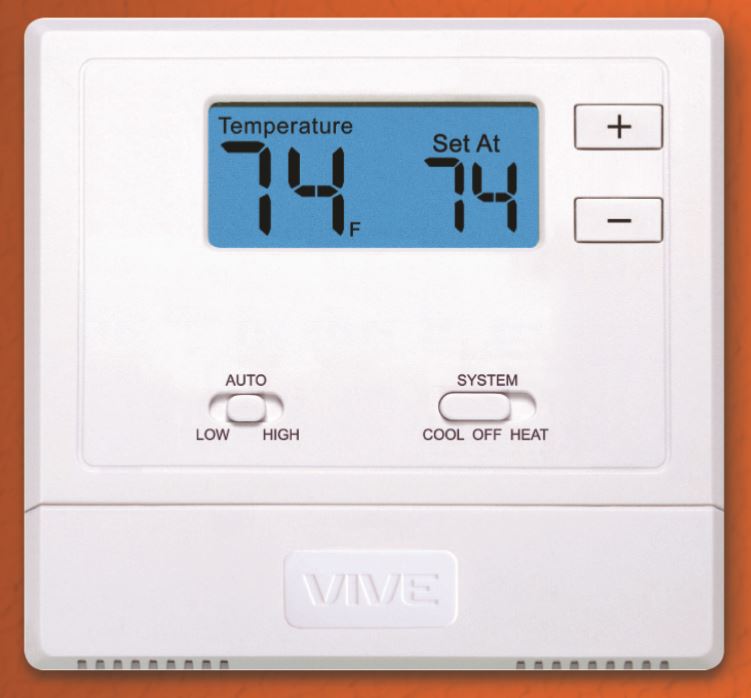

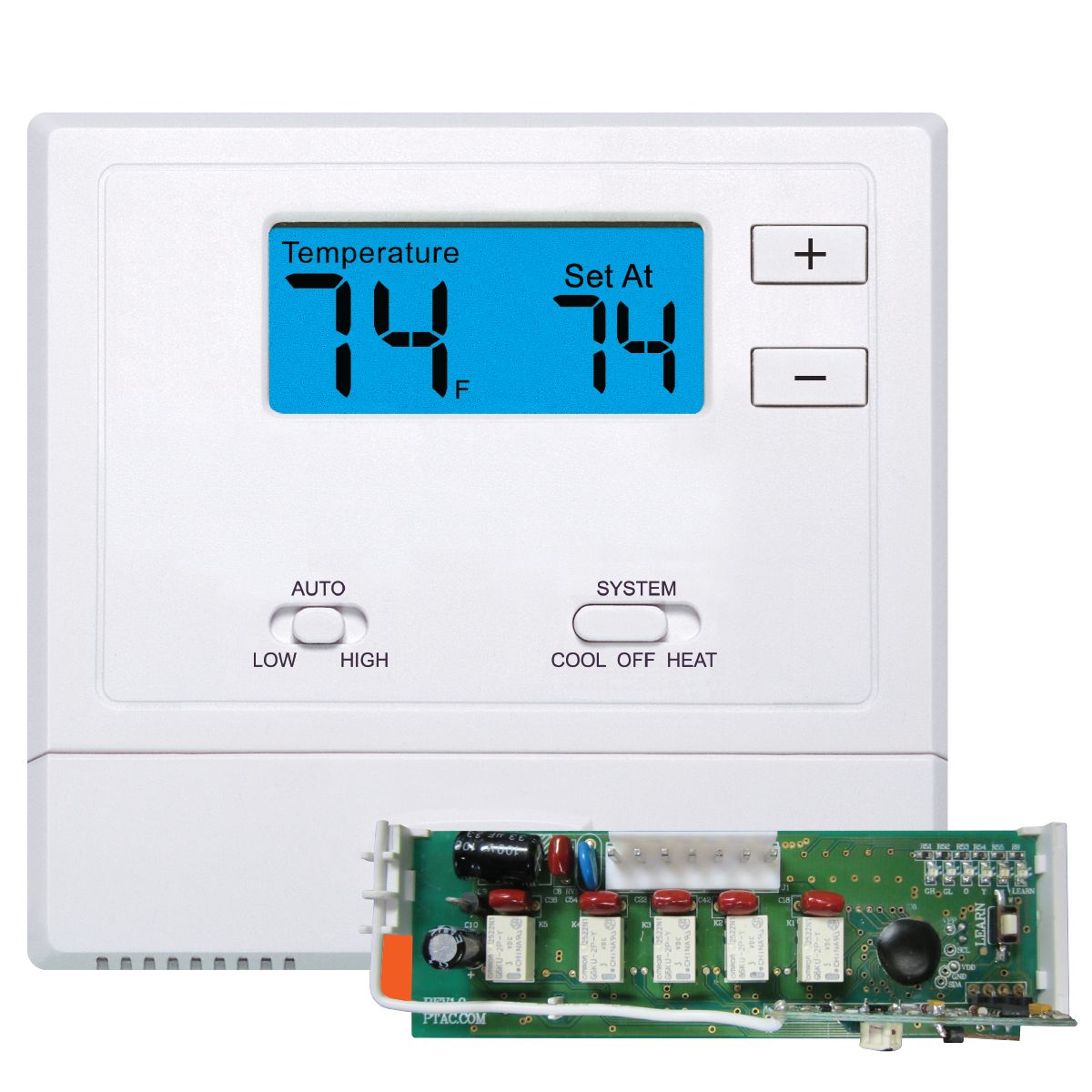

VIVE – TRADEPRO® – Wireless PTAC Thermostat Non-Programmable 1H/1C Conventional or 2H/1C Heat Pump w/ 2″ Sq. In Display

Product code: TP-N-631W
Availability: Available on backorder
Quick Overview:

Item: TP-N-631W  – MFR: TP-N-631W

EASY AND USER-FRIENDLY

Vive™ products respond to every phase of life with corresponding comfort and style. Our cutting edge temperature management is easy to program and user-friendly, and it communicates with almost any HVAC system. Experience the exclusive controls that bring maximum performance, efficiency and comfort into the home or commercial setting.

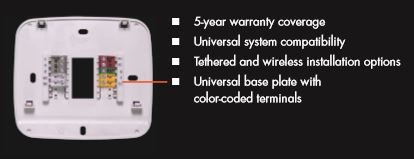

  •  5-year warranty coverage
  •  Universal system compatibility 
  •      Tethered and wireless installation options 
  •      Universal base plate with color-coded terminals
Category:

VIVE – TRADEPRO® – Wireless PTAC Thermostat Non-Programmable 1H/1C Conventional or 2H/1C Heat Pump w/ 2″ Sq. In Display

 Item: TP-N-631W  – MFR: TP-N-631W

EASY AND USER-FRIENDLY

Vive™ products respond to every phase of life with corresponding comfort and style. Our cutting edge temperature management is easy to program and user-friendly, and it communicates with almost any HVAC system. Experience the exclusive controls that bring maximum performance, efficiency and comfort into the home or commercial setting.
  •  5-year warranty coverage
  •  Universal system compatibility 
  •      Tethered and wireless installation options 
  •      Universal base plate with color-coded terminals

Description

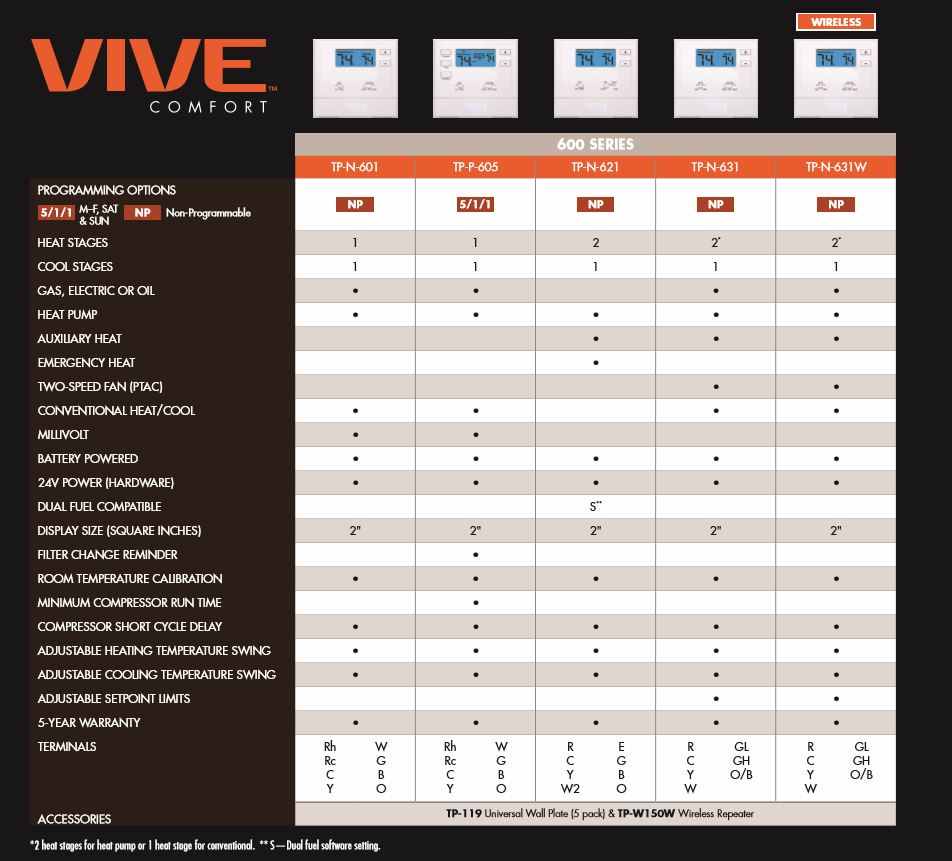

VIVE – TRADEPRO® 600 Series – Economy

Features:

  • Economy/builder line
  • Universal sub-base for easy plug-in upgrades
  • Easy access battery compartment
  • Customizable staging logic for installers
  • Separate O/B terminals
  • Affordable wired and wireless PTAC control
  • 2 speed fan for PTACS600

Specifications

Weight 1.4 Pounds (lbs)
Length 1.5 Inches (In)
Width 4.7 Inches (In)
Height 4.4 Inches (In)
Country of Origin CHN
UPC or Barcode VIVE631W
Hazardous Material No
EPA Cert Required No
750mV Compatible Yes
Accuracy Plus or minus 1 degree
Ambient Temperature Range 41°F to 95°F (5°C to 35°C)
Auto Changeover No
Backlit Yes
Batteries Included Yes
Battery Backup Yes
Brand VIVE
Built In Wi-Fi No
Change/Check Reminders Yes
Color White
Daylight Savings Time Ready No
Differential Temperature Plus or minus 2 degree
Digital-Non Programmable Yes
Digital-Programmable No
Display Yes
Display Options LCD, Backlit
Displays Outdoor Temperature No
Dual Transformer Compatible No
Electrical Connection 24 volts
Electrical Rating 18-30 VAC, NEC Class II
Fan Switching Yes
Heat Pump Compatible Yes
Hinged No
Humidification No
Indoor Remote Sensor No
ISO Code CN
Language English
Low Battery Indicator Yes
Manual Yes
Mounting Drywall, stud, junction box
Number of HVAC Zones 1
Operating Temperature Range 44°F to 90°F (6.6°C to 32.2°C)
Power Method Dual Powered: Battery or Hardwired
Programmable Fan No
Removable Interface No
Sensing Element Yes
Stages Cool 1
Stages Heat 2
Switch Action Relay
System Switching Yes
Temperature Range 44°F to 90°F (6.6°C to 32.2°C)
Temperature Settings per Day 1
Terminal Designations R, C, Y, W, GH, GL, O/B
Touchscreen No
Type Controls
Vacation Mode No
Voltage 24
Warranty Offered 5 Year
Item number: TP-N-631W
Weight 2 lbs
Dimensions 2 x 5 x 5 in
Color: White
Sell By: each
Price per: each
Quantity Per Case 1
